SCSM and Cireson User Accounts and Groups Checklist Worksheet

When installing Microsoft System Center Service Manager, there are a lot of things to consider to make sure the install goes well and will be easy to modify in the weeks, months and years to come.

In order to maintain a secure, stable and maintainable SCSM environment, it’s important that all required user accounts are set up with individual service accounts, long secure passwords, and only the necessary rights to get the job done.

Below is a checklist worksheet of the accounts and groups that would be needed for a typical installation of both SCSM and Cireson products. Each person installing SCSM and/or Cireson products may have a different setup, different app and a different number of environments, but this checklist should cover all the items needed (just remove the ones that are not relevant to your environment).

The environment column is for recording what environment the account is for. It is best practice to have a different service account for the same function across dev, test and production environments to ensure that changing the password in one does not impact the other environments.



Generic NameNew Account Name EnvironmentAccount Permissions & Use
SCSM Service Account Prod Test Dev Service Account (also used to install SM)

  • Place in SCSM_Admins group

  • Read rights to SCCM database if not using connector accounts (see below)

  • Read rights to AD if not using connector accounts (see below)

  • Add as Remote Desktop User for all servers

  • Needs log on local rights to servers

Workflow Account Prod Test Dev Workflow Account with email address

  • Place in SCSM_Admins group

  • Verify time zone associated with this user

  • Needs log on local rights to servers

SQL Reporting Account Prod Test Dev Reporting Account (SSRS)

  • Will be entered during SQL and SM Install

Analysis Reporting Account Prod Test Dev Analysis Account (SSAS)

  • Will be entered during SQL and SM Install

SQL Service Account Prod Test Dev SQL Service Account, only if SQL does not already exist. Otherwise, you can use current SQL service account.

  • Place in scsm_Admins group

  • Used during SQL install

  • Needs log on local rights to servers

Exchange Connector Account Prod Test DevService account used to communicate with MS Exchange to read and send e-mails.

  • Create an email account (mailbox) in Exchange for this account. Just use the default email address

  • Place in scsm_Admins group

  • Verify time zone associated with this user

  • Create Exchange Rule that does not allow Auto Replies to go to this email account

  • Give SCSM administrators ownership rights over this email account, and have them add the mailbox to their Outlook locally (give rights to regular user accountsnot admin accounts)

  • Ensure it has a (spam) account for whatever system filters incoming emails

  • Needs log on local rights to servers

AD Connector Account Prod Test DevAD Connector Account

  • Needs read rights to Active Directory

SCCM  Connector Account Prod Test DevSCCM Connector Account

  • Needs read rights to SCCM SQL database server and database

SCORCH Connector Account Prod Test DevSCOrch Connector Account

  • Needs read rights to SCOrch

SCOM Connector Account Prod Test DevSCOM Connector Account

  • Needs Advanced Operator rights in SCOM

SCORCH Service Account Prod Test DevSCOrch service account

  • No special rights required.

AppPool Account Prod Test DevCireson Portal App Pool account

  • Needs to be a local administrator on Portal server

  • Needs to be a member of the Service Manager Administrator role

  • Needs to be a SysAdmin on the following databases

  • ServiceManager

  • ServiceManagement.

  • Analytics.


(Note: Default database names may be different in specific environments)
Cache Builder Account Prod Test DevCireson CacheBuilder account is responsible for keeping the SCSM and Cireson databases in sync.

  • Needs to be a local administrator on Portal server.

  • Needs to be a member of the Service Manager Administrator role.

  • Needs to be a dbo on the following databases:

  • ServiceManager.

  • ServiceManagement.

  • Analytics.


(Note: Default database names may be different in specific environments)
Portal Installer Account **This is the admin user doing the install** Prod Test DevThe admin account that will run the portal install on the SCSM Server.

  • Needs to be a local administrator on the Portal Server.

  • Needs to be a member of the Service Manager Administrator role.

  • Needs to be Sysadmin on the SQL Instance that the portal will be installed in to.



* Ensure GPO is not going to pull users or groups off computers
* Ensure the service accounts are not in OUs or Groups that will restrict “Logon as a service”
* Ensure the service accounts are not in OUs or Groups that will restrict “Batch logon”
* Ensure the passwords will not be changed
* Ensure the passwords do not contain $ or

There are also several user groups that are required for each of the items below:



Generic Name Group Name Group Details Group Permissions & Use
All SCSM Administrators Group that is used to contain all administrators of SCSM. This can include service and user accounts as well as computer accounts if needed.

  • Place in administrators' group on all servers

  • This group of users must be in the same domain as Service Manager. Users from any other domain—even child domains—are not supported.

All SCSM Analysts Group that is used to contain all users that are going to be editing Work Items.

  • Used for SM Security Roles and Cireson Apps

All SCSM Report Users Group that is used to contain all users that require access to view SCSM Reports within the SCSM Console and SSRS.

  • Used to control access to SSRS reports within SM

All Analysts for each support group scsm_SupportGroupName Each support group requires a separate group to contain users to assign to each group within the SCSM system.

  • Will discuss names during the planning phase, after initial server installs

  • Will hide all from Global Address List (GAL)



*Can use company naming convention for prefix  e.g. scsm_   scsm.  scsm- 

Thank You – Cased Dimensions Migration

You’ve Got Email

Please check your email for the next steps, including a live demo of the Cireson solutions.

Live Webinars

Register for upcoming webinars in your region.

On-Demand Webinars

Watch previous ITSM, ITIL, and System Center webinars and videos.

Cireson Community

Connect and collaborate with industry thought leaders, System Center experts, customers, and Team Cireson.

Training Courses

In person and virtual training courses to fit your needs, budget, and timeline.

Consulting Services

Our Services Team is comprised of ITIL-certified experts with deep product and industry knowledge.

SCSM Service Requests, 3 Success Factors

As a consultant with Cireson, I am often engaged with customers regarding SCSM Service Requests. The first things we discuss during these engagements are the most important factors to be successful. In this article we will talk in depth about the following factors:

  1. Not knowing where to start
  2. Trying to do too much
  3. Service Catalog navigation



Not Knowing Where to Start

Where do we start when it comes to SCSM Service Requests? Try starting out with a general request that can be used as a catch all, and then branch out. When using a general request, you need to establish a procedure to handle these process-less requests. This is often overlooked because the end goal is to surround each service request with process unique to that request type. Being more realisticthere will always be requests that don’t yet have this process established, and we don’t want them to fail because of a lack of procedure. For example, if a request comes in for something less-than-common, does the Service Desk know how to classify, prioritize, and assign the request? Perhaps you can establish a process based on the category/area of the request, or a related configuration item. Lacking process here can lead to Analysts delaying the completion and/or a failed Service Request.

Another great place to start is Incident/Ticket Reporting to identify common End User Requests.  These requests tend to be “I need something” such as an application installed, a second monitor, access to a network share, whatever…

Once you identify the most common requests, consider each one and determine if there’s value in adding this to your service catalog.  When determining value analyze from both an End User and IT perspective.  By now you should have a list of request offerings to build, great, now prioritize which ones to build now and which ones to build down the road.  I say some now and some later because you need to document the current process for each, improve existing process or for some develop the process.



Trying to Do Too Much

When dealing with a first time Service Catalog, it is extremely important to keep it simple. Keep everything as a manual process and continue to fine tune until you have proven success. Once you are happy with the manual process, you can then start to introduce some automation. There is nothing worse than spending weeks automating a process, just to figure out that everyone doesn’t agree on that process.

After you have a process solidified, think about your ROI when determining if automation is worthwhileFor example, if you only spend 5 minutes on a task each month, it’s probably not worth spending 2 weeks to automate. If you spend 5 minutes a day on something, you will recoup your automation cost much more quicklyFor example, let’s say you have a few Service Requests that require the Affected User’s manager to approve before they can proceed. Your current manual process is for the Service Desk to look up this manager in Active Directory and add that individual as an approver. The entirety of this task could be automated via an Orchestrator runbook or Cireson PowerShell activity with relative easeWith analysts likely doing this look-up routinely, it wouldn’t take long to make this worthwhile. While its great to have everything automated, it’s always a measurement of cost versus value.



Service Catalog Navigation

Once again, the theme of today is to keep it simple! When determining the layout of your Service Catalog, you need to keep the end user experience in mind. If the end user can’t find it, then they definitely will not use it.

Try to keep navigation simple, and drill-down to requests with simplified categories. For example, don’t have 20+ choices to make right off the bat, and don’t have several choices that are similar, like “Desktop Request” and “Equipment Request.” Remember that Cireson Advanced Request Offerings offer conditional questions based on answers to previous questions. This means that you can cover several similar request types in a single form, such as Laptop requests and Mobile Device requests.

There are also scenarios where a general end user will not need access to a certain request offering. Fortunately, SCSM Service Requests can be scoped by Active Directory group using “Catalog Item Groups, so you can hide offerings from some groups if not relevant. This is another method you can use to keep the choices relevant and focused.



Summary

In order to be successful with SCSM Service Requests, try to keep the above in mind. Use analytics and reporting to prioritize the Service Requests to build. Do not overlook generic Service Requests and branch out from thereFor each request you design, once you have proven success with the manual approach, you can then start to introduce some automation. Don’t try to automate broken processes! As you build out different request types, don’t forget to take a step back and look at the overall design of the Service Catalog. Keep it simple and remember to think about it from the end user’s perspective.



Thank You – itnetx Migration

You’ve Got Email

Please check your email for the next steps, including a live demo of the Cireson solutions.

Live Webinars

Register for upcoming webinars in your region.

On-Demand Webinars

Watch previous ITSM, ITIL, and System Center webinars and videos.

Cireson Community

Connect and collaborate with industry thought leaders, System Center experts, customers, and Team Cireson.

Training Courses

In person and virtual training courses to fit your needs, budget, and timeline.

Consulting Services

Our Services Team is comprised of ITIL-certified experts with deep product and industry knowledge.

Is a SCSM Web Portal Available? Absolutely. Here’s What You Need to Know.

When Microsoft Service Manager first came out, it offered a fairly robust system for IT Service Management and Asset Management.  Early on, users faced some pretty common challenges, from few out-of-box configurations, to daunting customization projects, and the inability to give end users web accessibility via SharePoint. Fast forward 10 years and while there is now considerably more documentation, user guides, and training available for SCSM, Microsoft still has not introduced an answer to the accessibility problem, which is absolutely needed.

At first glance, the most appealing option for many organizations is to use the Microsoft SCSM Web Console, an end-user-only HTML5 self-service portal. This allows end users to submit issues directly and is a welcome upgrade from the SharePoint-based Service Manager Web Portal. Unfortunately, it’s still not usable for Analysts as they can’t manage tickets, making it impractical overall.

To answer this call for web accessibility, we created the Cireson SCSM Web Portal. Comprised of a web-based Self-Service Portal for end users and an Analyst Portal for Support Teams, our Portal is web-based and 100% browser, device, and OS agnostic.

The Cireson Self-Service Portal provides end-users with the ability to submit their own requests, which is similar to the out-of-box Microsoft Portal. The Cireson Self-Service Portal also allows end-users to manage/update their own submitted requests at a determined granularity. The Portal can also be easily customized, allowing for simple changes like color schemes to complex modifications like custom layouts, custom pages, and actual AD-group access control. Many of these changes can be done with some supported CSS tweaks that even the lowest of entry-level admins can find via a quick online search. The result is that end users will call and email less, instead opting to use the faster, sleeker Portal to initiate support. Lucky for the System Center community, the Cireson Self-Service Portal is free to download, making it an all-around better solution than the out-of-box Microsoft Portal that organizations can start using immediately.

The Cireson SCSM Analyst Portal is similar to the Self-Service Portal, but it provides Anaylsts with the ability to manage Work Items from any browser, device, and operating system. The Analyst Portal also includes the ability to create custom tasks for Analysts to use. These tasks can either be copied and pasted from various sources like the Cireson Community, clipped together by someone with amateurish-level JavaScript skills, or expertly constructed by any web dev who has glanced at JavaScript at least once. With the Analyst Portal, custom code can be run on any page, can grab any object within SCSM, and can do just about anything. To get started, check out the free community edition of the Analyst Portal for web-based Incident Mangaement.

The Cireson Portal provides oodles of functionality that both end users and Analysts get excited about. The Portal also provides upper management some functionality in the form of Dashboards and graph or table-drive datasets that show drill-down-capable models of Work Item and Configuration Item data. It’s reminiscent of using SQL Server Reporting Services, but a) without sys admins dreading over creating reports, b) far less time-consuming to create/modify a report, and c) it has added functionality. With a little bit of SQL or oData experience, custom reports can be created by linking any database, including SCSM DataWarehouse, Configuration Manager, or any other custom database on any server/instance, showing rich result sets, dashboards, counters, and analytics as needed. There is even an export and print option!

Both the Cireson Self-Service and Analyst Portals are built using HTML5 and provide direct replacements for the out-of-box Microsoft Web Console and SCSM Console. They also provide additional benefits including advanced request offerings, an integrated Microsoft Outlook Console, an integrated HTML5 knowledge base, survey options, and more. Our SCSM Portal is fairly lightweight and can be installed on any existing SCSM server and uses an existing SQL instance, making setup an easy click-next install.  Similarly, there are dozens of copy/paste-able customizations that are available with no modifications needed. And since installing the Portal is easier than using the SCSM Console, it should most definitely be on your list to try it out.

Thank You – Provance Migration

You’ve Got Email

Please check your email for the next steps, including a live demo of the Cireson solutions.

Live Webinars

Register for upcoming webinars in your region.

On-Demand Webinars

Watch previous ITSM, ITIL, and System Center webinars and videos.

Cireson Community

Connect and collaborate with industry thought leaders, System Center experts, customers, and Team Cireson.

Training Courses

In person and virtual training courses to fit your needs, budget, and timeline.

Consulting Services

Our Services Team is comprised of ITIL-certified experts with deep product and industry knowledge.

Definitive List of SCCM Addons, Tools, Extensions, & Scripts (Updated for 2019)

Here are a variety of free community tools and paid products for Microsoft Configuration Manager, created by Microsoft MVPs, System Center experts, colleagues, and SCCM enthusiasts. These SCCM addons are listed in no hierarchical order and are not specifically endorsed by Cireson.

If you have other tools you’d recommend, please let us know!

Table of Contents

  1. Free Solutions
    1. Infrastructure Tools
    2. Intune
    3. Configuration Items
    4. Application Management
    5. Software Updates
    6. OS Deployment
    7. Frontends
    8. Windows 10 Servicing
    9. Helpdesk
    10. Other
  2. Paid Products

Free Solutions

Infrastructure Tools

SQL Server Maintenance
This script creates all the objects and jobs that you need.

SQL Maintenance Script for SCCM

ConfigMgr Prerequisites Tool 3.0.3
This tool will assist administrators in installing all the correct prerequisites for a ConfigMgr hierarchy, different Site Systems Roles and much more.

SCCM Prereq Tool

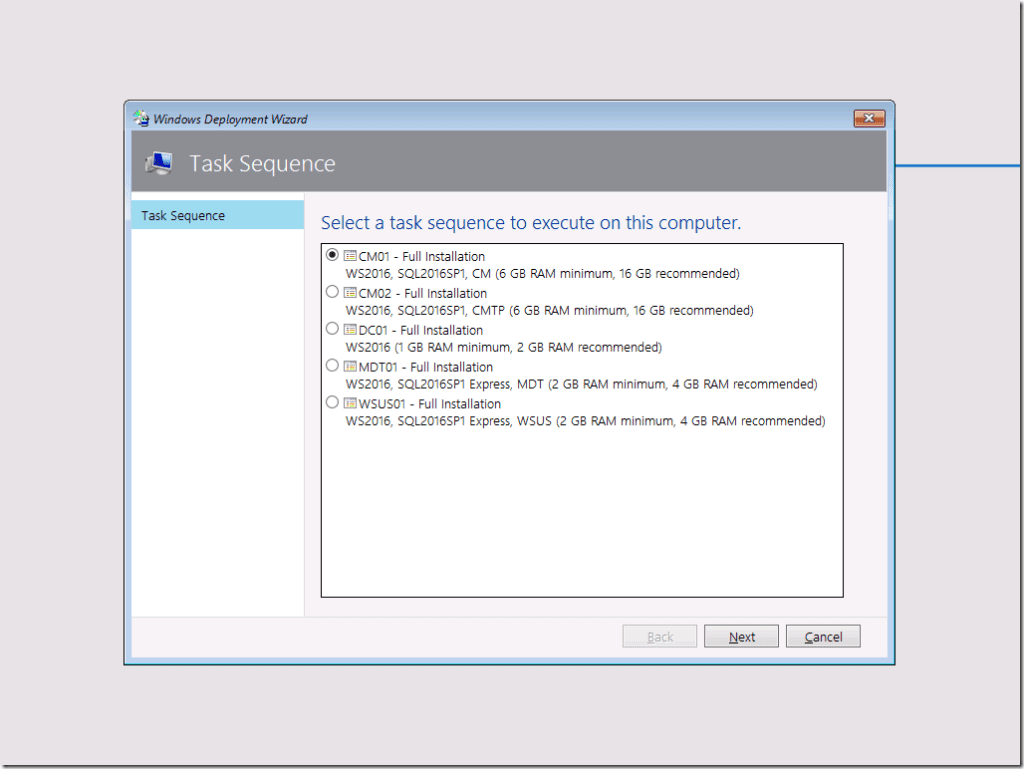

Hydration Kits
